Pivoting frame system with turning cross ELTURNER

Our pivoting frame system with turning cross VWB33/73 provides the option to turn the web during the process and feed it to the next process with high precision. In this way, you meet highest quality demands and reduce waste to a minimum.

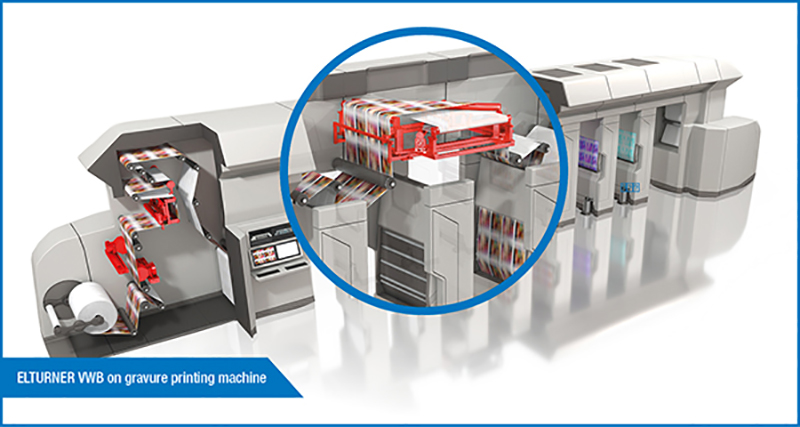

Erhardt+Leimer pivoting frame systems are used in the printing industry as well as in converting processes.

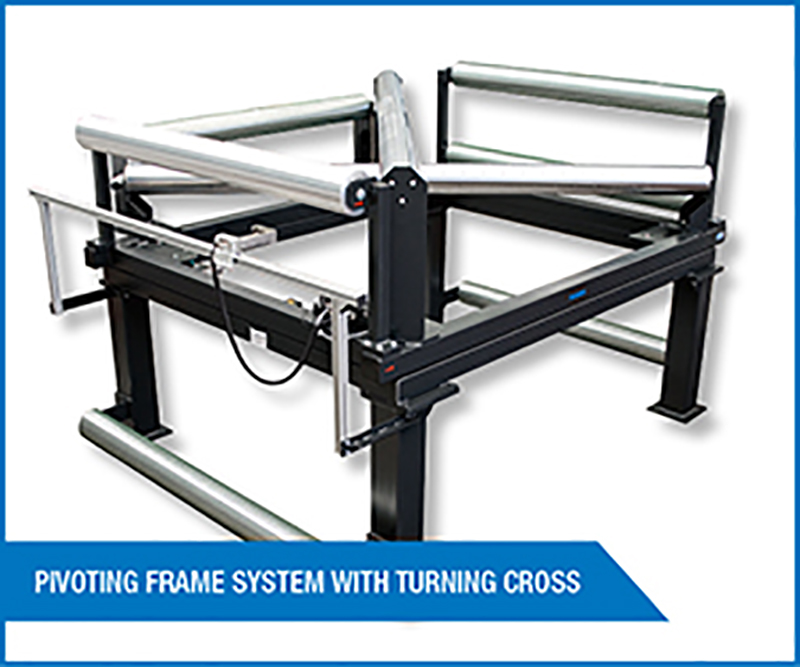

Pivoting frame system with turning cross VWB33/73

• Compact pivoting frame system with wear-free, brushless drive technology for highest control accuracy and control dynamics
• Turning bar optionally with pneumatic ventilation
• Reliable detection of paper and transparent film edges
• Integrated digital controller with position, speed and current controller
• Can be connected to EL.NET control systems via Ethernet in star or line topology
• Optionally with integrated fieldbus interface Ethernet/IP/UDP, PowerLink or Profinet
• Speed setup and simple service and diagnostics options using web-based management
