Stretch blow molding machines produce tens of thousands of PET bottles per hour for demanding hot‑fill beverages. To keep high‑volume production stable, blow molds must withstand extreme loads – an area where Röders draws on more than 50 years of engineering expertise. For steel molds used in hot‑fill applications, the mold maker in Soltau recommends the DLC coating BALINIT DYLYN PRO from Oerlikon Balzers. A customer in the U.S. cut cleaning effort for its steel molds to about one quarter and significantly reduced costly downtime.
In the hot‑fill process, non‑carbonated beverages such as juices, iced teas, or sports drinks are typically filled at 85 to around 100 °C. PET (polyethylene terephthalate) is well suited because stretch blow molding can form temperature‑ and vacuum‑stable bottle geometries. At the same time, requirements for the blow mold increase: the heated preform must flow reliably under high blow pressure, fill the cavity completely, and release cleanly afterward.

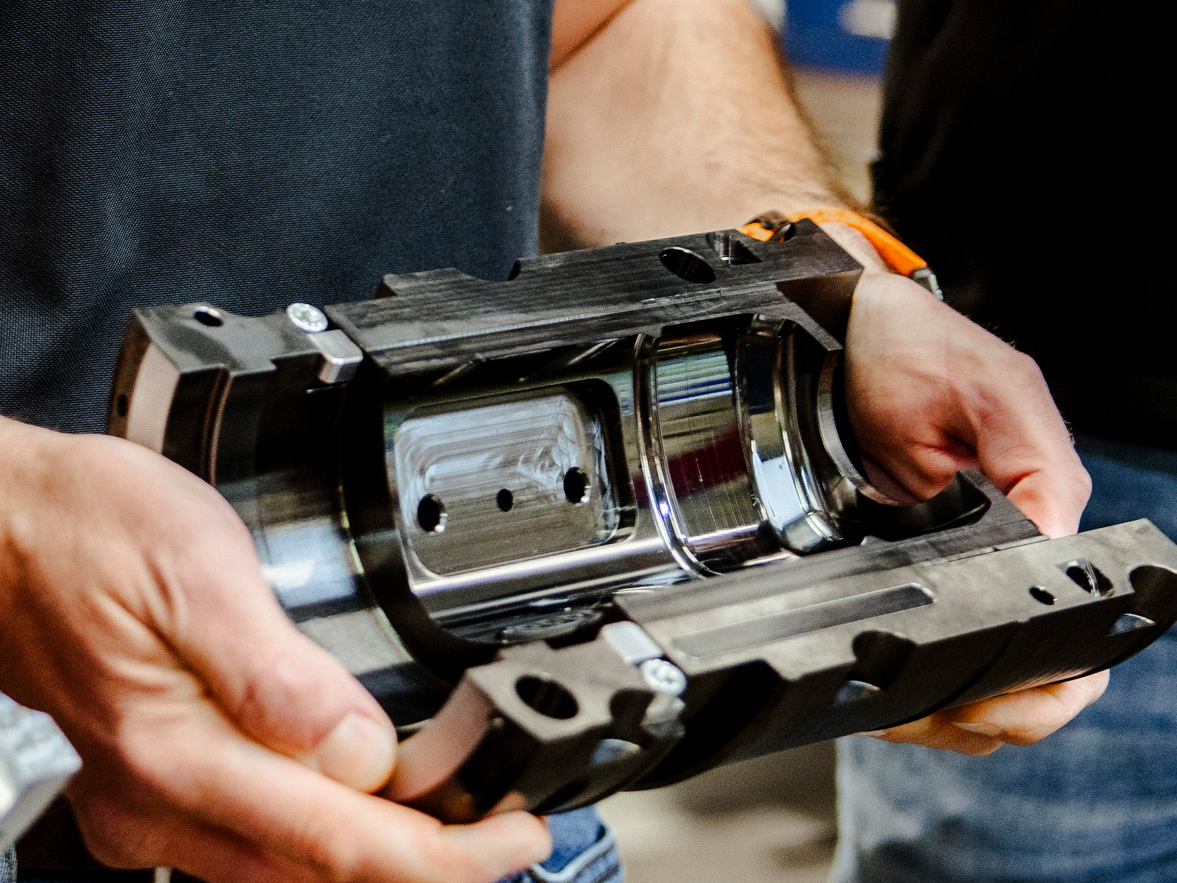

Röders has helped shape PET blow mold technology since the 1970s. Over the decades it has shipped several hundred thousand blow molds to customers worldwide; current capacity is around 7,000 molds per year and lead times are typically short. The backbone is Röders’ own HSC (high‑speed cutting) milling machines, which can produce high‑gloss surfaces down to Ra < 10 nm – without manual repolishing.
BALINIT DYLYN PRO adds further process robustness. The carbon‑based DLC (diamond‑like carbon) coating was developed for applications in the food and medical industries, is chemically harmless, and is certified by the U.S. Food and Drug Administration (FDA). It protects against corrosion and wear and, thanks to pronounced non‑stick properties, reduces friction and abrasion at the interface between mold and PET. This mitigates stick‑slip: the hot polymer is less likely to adhere, stop abruptly, and tear. The result is improved material flow, more uniform cavity filling, easier demolding, and higher optical bottle quality – especially in critical areas. Above all, production stability and economics benefit.
In practice, a U.S. Röders customer now has to stop its stretch blow molding machines only once per 8‑hour shift for mold cleaning; previously, several stops were required. Cleaning time has also been reduced because deposits can be removed faster. “On large lines with 20 blow stations and an average output of around 30,000 bottles per hour, the cost effects in continuous high‑volume operation add up significantly,” says Steffen Lühning, Sales Manager Blow Molds at Röders. Less downtime has an immediate impact on overall equipment effectiveness (OEE), unit costs, and delivery capability – and can deliver a fast return on investment relative to coating costs.
“In some cases, blow pressure – and therefore energy consumption – can even be reduced, which is a major advantage in regions with high energy costs,” adds Helge Heuer, Technical Sales Manager Blow Molds at Röders. The non‑stick effect also supports the growing use of recycled PET (rPET): quality fluctuations can promote deposits on molds if the blow process is not adjusted accordingly, and coated surfaces counteract this effect.
About Röders GmbH
Founded around 1800 as a pewter foundry, today’s Röders GmbH has been family-owned for six generations and operates in three main business fields: milling and grinding machines, blow molds for PET bottles, and pewter products. With around 600 employees worldwide, Röders maintains subsidiaries in China, France, Canada, Taiwan, the United States, and Vietnam.
At its German headquarters in Soltau, the company runs a technology center dedicated to the development of advanced blow mold technology and process optimization – for example through quick-change systems or reduced blow pressure and energy consumption using low-pressure mold bases. Röders cooperates with leading blow molding machine manufacturers and bottlers; its bottle and blow molding laboratory is certified by PepsiCo and authorized by Coca‑Cola Europacific Partners.
www.roeders.de
Über Oerlikon Balzers
Oerlikon Balzers is one of the world’s leading suppliers of surface technologies that significantly improve the performance and durability of precision components as well as tools for the metal and plastics processing industries.
Extremely thin and exceptionally hard coatings, marketed under the BALINIT and BALIQ brand names, reduce friction and wear. The BALDIA portfolio of diamond coatings enables top performance even when machining very challenging materials. The BALITHERM brand opens up a broad range of heat treatment services, whereas BALTONE comprises coatings that are available in a full range of elegant colours, perfectly suited for decorative applications. BALORA gives components effective protection from oxidation and corrosion in environments with extremely high temperatures. BALIMED ThinFilm coatings, with wear-resistant, biocompatible, antimicrobial and chemically inert properties, have been developed especially for medical applications. Under the BALIFOR technology brand the company has introduced technologies which provide tailor-made solutions for the automotive market.
Worldwide, more than 1,300 coating systems are in operation at Oerlikon Balzers’ facilities and its customers. Equipment engineering and assembly of Balzers’ systems are processed in Liechtenstein and in Bergisch Gladbach (Germany). Oerlikon Balzers operates a network of more than 100 coating centres in 35 countries in Europe, the Americas and Asia. Oerlikon Balzers is – together with Oerlikon Metco, Oerlikon AM, Oerlikon HRSflow, Oerlikon Riri and Oerlikon Fineparts – part of the Switzerland-based Oerlikon Group.
www.oerlikon.com/balzers
About Oerlikon
Oerlikon (SIX: OERL) is a global leader in surface technologies and advanced materials. With a unique portfolio spanning surface engineering, high-performance materials, coating equipment and components, we make products better by enhancing performance, efficiency and sustainability. Oerlikon serves a wide range of industries, including aerospace, automotive, energy, medical, luxury, semiconductors and tooling. Headquartered in Pfaeffikon, Switzerland, Oerlikon operates in 38 countries with approximately 9,300 employees, achieving sales of CHF 1.6 billion in 2025.
